Every modern diesel has a diesel particulate filter (DPF) in the exhaust. It traps the soot the engine produces, and every few hundred kilometres the car has to burn that soot off. This is called regeneration. The car does it on its own, and in most cars it doesn't tell you. That's fine on a long trip. But if you mostly drive short distances, it's the reason so many DPFs end up blocked.
How a DPF regeneration works
As you drive, soot builds up in the filter. The engine control unit estimates how much is in there, from the pressure difference across the filter and from how the engine has been driven. When the soot load reaches its limit, the engine starts an active regeneration. It changes the fuel injection so that the exhaust gets much hotter, typically around 600 °C, and the soot burns off.
A regeneration usually needs 10 to 20 minutes of driving. On a long, steady drive it finishes without you ever noticing. Some soot also burns off on its own when the exhaust is hot anyway, for example on the motorway.
What happens when a regeneration is interrupted
If you switch off the engine during a regeneration, it simply stops. The soot that hasn't burned yet stays in the filter, and the car tries again on a later drive. Once in a while, that's harmless. The problem is the pattern: short trips to work, school or the shop, switched off every time before the regeneration has finished.
- The soot load keeps climbing. Every unfinished attempt leaves soot behind, so the next regeneration starts sooner and has more to burn.
- Fuel can end up in the engine oil. To heat the exhaust, many diesels inject extra fuel late in the combustion cycle. Part of it can get past the piston rings into the oil, and frequent interrupted regenerations make this worse.
- Eventually the DPF warning light comes on. When the filter is too full, the car may limit power and need a forced regeneration at a workshop. Left too long, the filter may need professional cleaning or replacement, which is expensive.
Soot burns off, oil ash doesn't
Besides soot, the filter also collects ash from the small amount of engine oil every engine burns. Ash doesn't burn in a regeneration, so it builds up over the whole life of the filter. A DPF that is filling up with ash regenerates more often and eventually needs cleaning or replacing, however you drive. Knowing how much ash is in there helps you plan for that.
How to tell that a regeneration is running
Some cars give hints, but none of them is reliable on its own:
- the idle speed is higher than usual,
- the radiator fan keeps running after you switch off,
- Start-Stop doesn't switch the engine off at the lights,
- the fuel consumption on the trip computer jumps up,
- there's a hot, sharp smell from the exhaust.
The only sure way is to read it from the engine control unit. A diagnostic tool such as VCDS or OBDeleven can show the soot load and whether a regeneration is active, but you have to connect it and find the right values every time you want to know.
A display that tells you

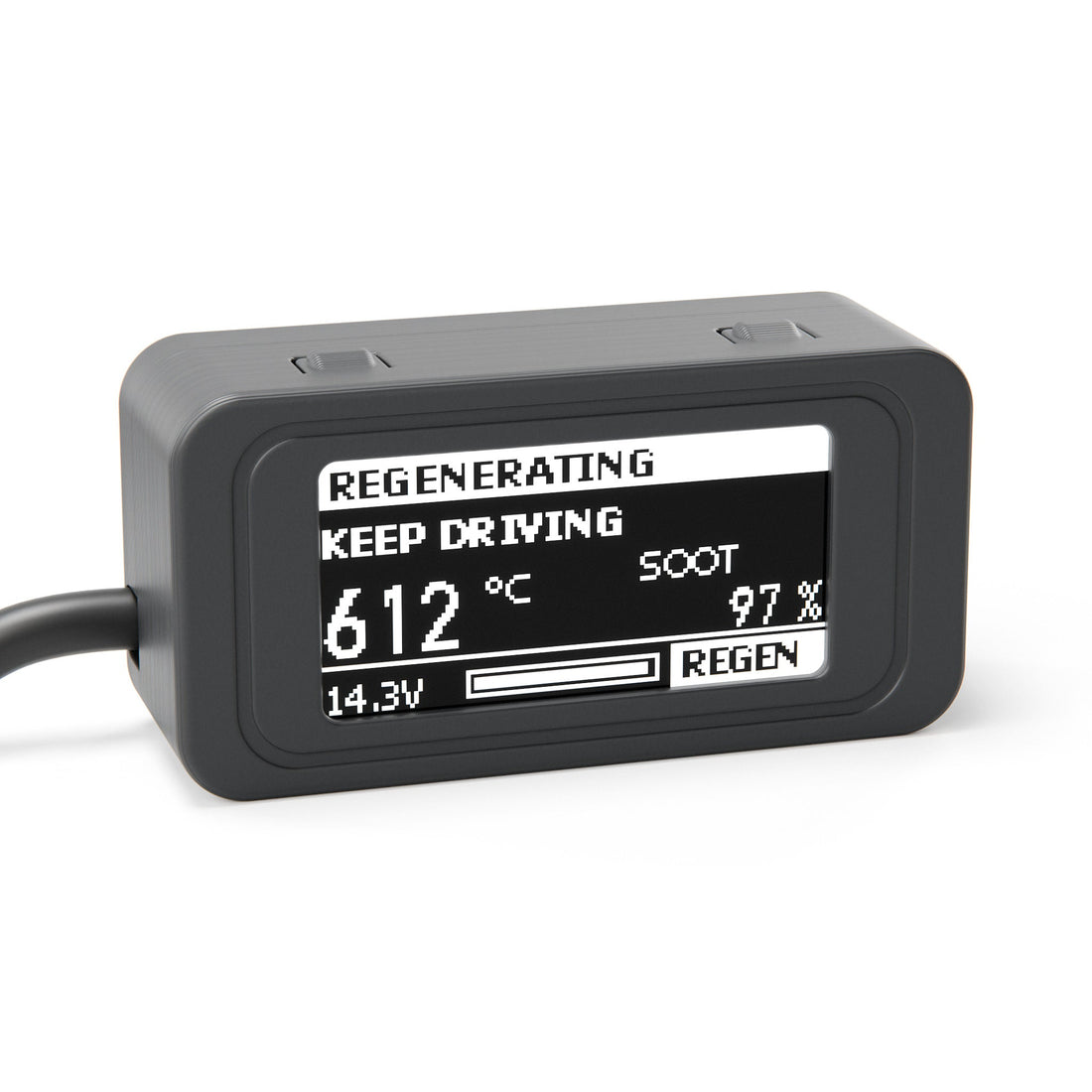

That's why we built the DPF Controller. It plugs into the car's OBD2 port and shows the state of the filter on a small OLED display, which you put wherever you can see it. When a regeneration starts, it beeps and the screen says so, so you know to keep driving. Another beep tells you when it has finished.
With the two buttons on the display you can also check:
- the soot load in % and in grams,
- the temperature before and after the DPF,
- the distance and time since the last regeneration,
- the oil ash in the filter.
It only reads data from the engine control unit and never changes anything in the car. You can unplug it whenever you like. It's made for Volkswagen Group diesels (Audi, Cupra, Seat, Škoda, Volkswagen) with a DPF. Not sure about your car? Send us your engine code or VIN and we'll check it.
What to do when a regeneration starts
If you can, just keep driving. A steady drive outside town, for example 10 to 20 minutes on a main road or motorway, gives the regeneration time to finish. If you have to stop anyway, that's no disaster, because the car will try again later. Just don't let it become a habit.
The DPF Controller is available to pre-order now with 15 % off. The first units ship at the beginning of December 2026.
